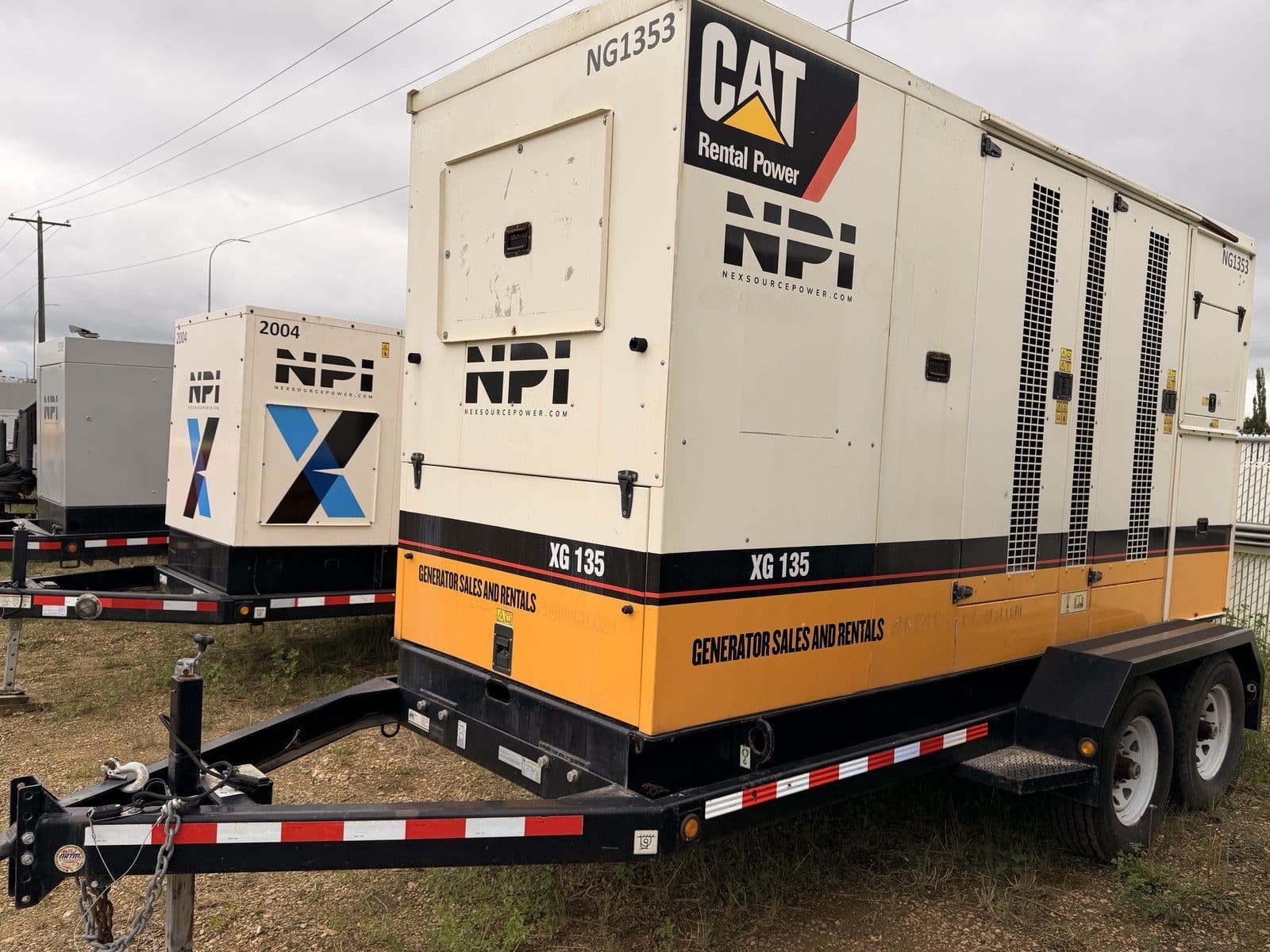

XQ135kW Portable natural gas generator packages

X G 1 3 5 R E N T A L
LEHX0026-00 1
CONTINUOUS 135 kW
60 Hz
Frequency
(Hz)
Voltage
(V)
Continuous
kW (kVA)
60 480/277 135 (169)
60 240/139 135 (169)
60 208/120 135 (169)
FEATURES
FUEL/EMISSIONS STRATEGY
 Capable of NSPS SI emissions site compliance*
 Proper air-fuel-ratio-control and three way catalyst
provided to reduce emissions
 Customer’s responsibility to complete site-specific
emissions demonstrating compliance to US EPA
NSPS
CAT® G3306B TA GAS ENGINE
 Robust high speed diesel block design provides
prolonged life and lower owning and operating costs
 Designed for maximum performance on effective low
pressure gaseous fuel supply
 Simple open chamber combustion system for
reliability and fuel flexibility
CAT EMCP 4.4 CONTROL PANEL
 Fully featured power metering, protective relaying,
and engine/generator control and monitoring
 Simple user friendly interface and navigation
 Automatic set-point adjustment integrated with
voltage and frequency changes
CAT GENERATOR
 Cat SR4B 445 frame generator designed to match
performance and output characteristics of the Cat
gas engine
 4 pole, permanent magnet excitation, random wound
 Segregated AC/DC, low voltage accessory box
provides single point access to accessory
connections
CAT DIGITAL VOLTAGE REGULATOR (Cat DVR)
 Three-phase sensing with adjustable volts-per-hertz
regulation
 Provides precise control, excellent block loading, and
constant voltage in the normal operating range
ENCLOSURE
 Highly corrosion resistant 12 gauge sheet steel
construction
 Two coat polyester powder-coated finish
 Four access doors for ease of maintenance
 Secure and safe design with safety glass control
panel viewing window with pad-lockable access
door
 Certified single point lifting eye and lifting points on
the base frame
DISTRIBUTION PANEL
 480/277V 3 phase
 240/139/208/120 3 phase
REAR CUSTOMER ACCESS
 Separate control panel and distribution panel access
doors
 Hinged door over main bus connectors w/safety
switch
 Emergency stop on panel
 Remote start/stop contacts
ENVIRONMENTALLY FRIENDLY
 Capable NSPS SI emissions site compilant
 110% spill containment of onboard engine fluids
 Meets 80 dB(A) at 7 m per SAE J1074
RENTAL READY FEATURES
 Anti-condensation heater 110-120 VAC
 Coolant heater 110-120 VAC
 UL Listed battery charger
 Full package CSA certification
COOLING SYSTEM
 Provides 40 C (122 F) ambient capability with 0.5
g/bhp-hr NOx per NSPS 2010 at 100% continuous
rating before derate
*Further compliance/certification details to be presented at March 2013 Cat Rental Meeting
